Integra-Z Laser

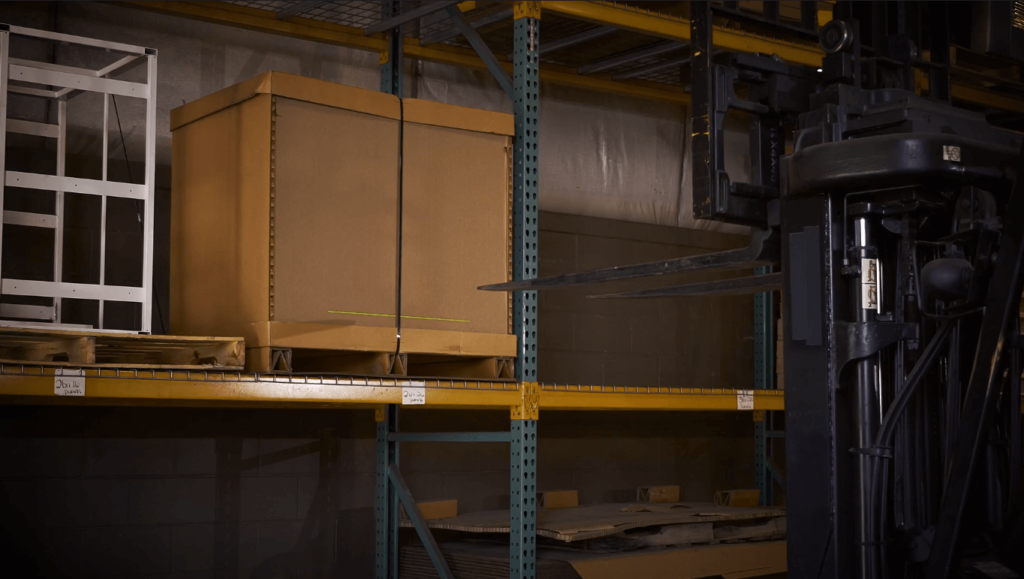

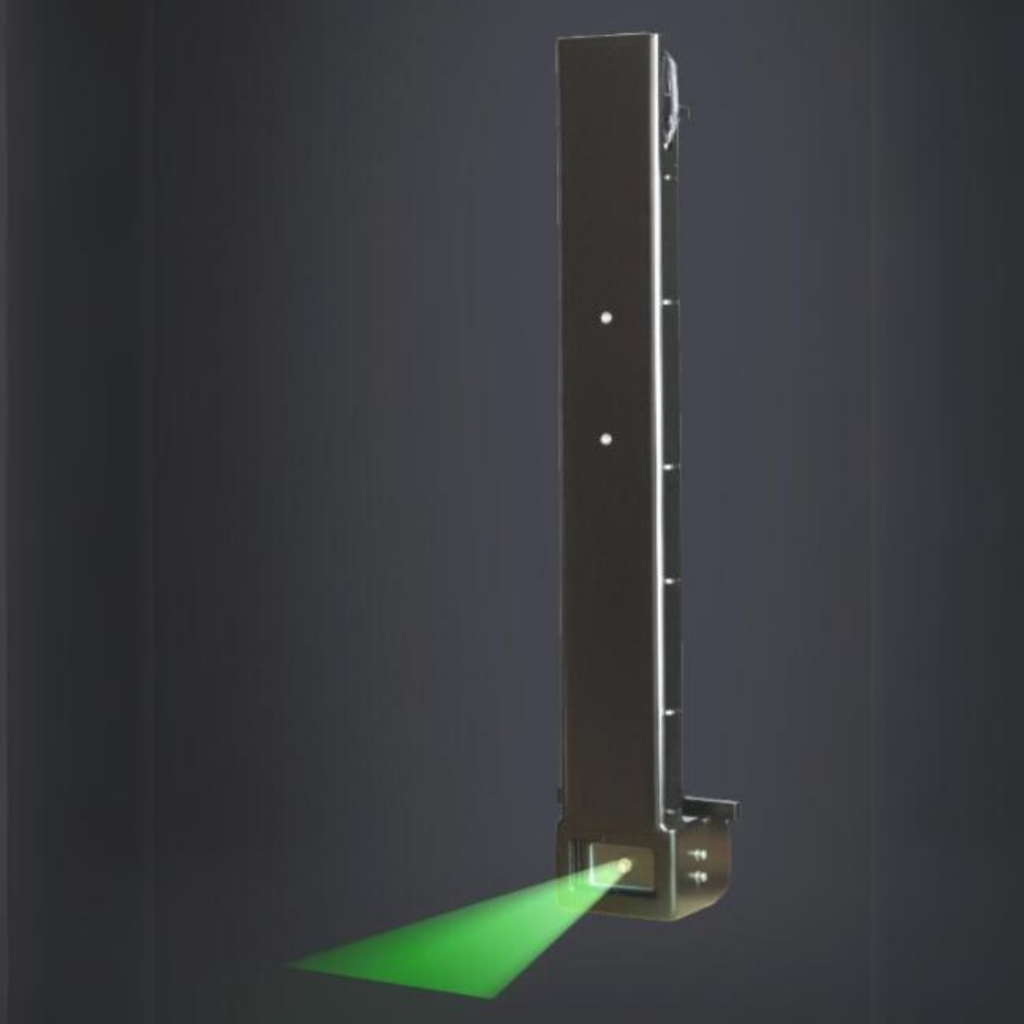

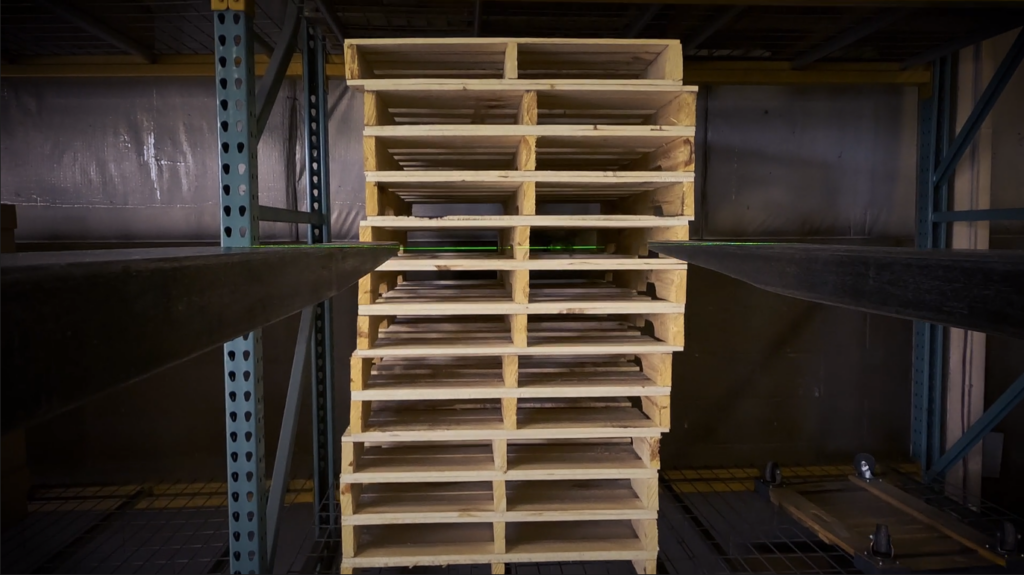

The Integra Laser is positioned on the carriage to project a green laser beam directly in line with the end forks. This ensures accuracy in fork alignment for effortless aim in pallet openings. Designed for seamless integration on your truck, the laser system guarantees durability and hassle-free installation, effortlessly becoming a part of your forklift’s functionality. The system can be installed in as little as 5 minutes.

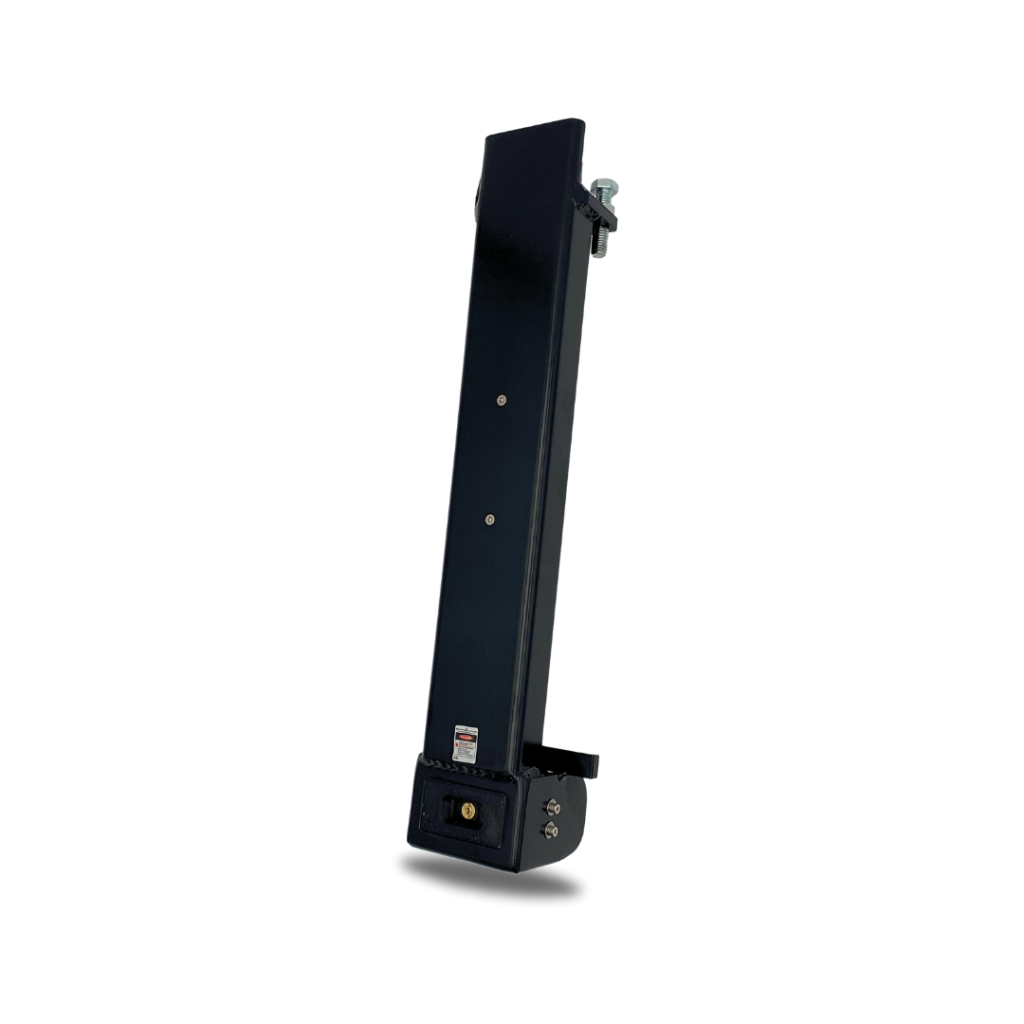

Its self-contained design eliminates the need for any wiring modifications on the truck. With a battery holder and control system thoughtfully integrated into the robust welded steel mount, installation is simple. All items will be secured on the truck at once by tightening two bolts.

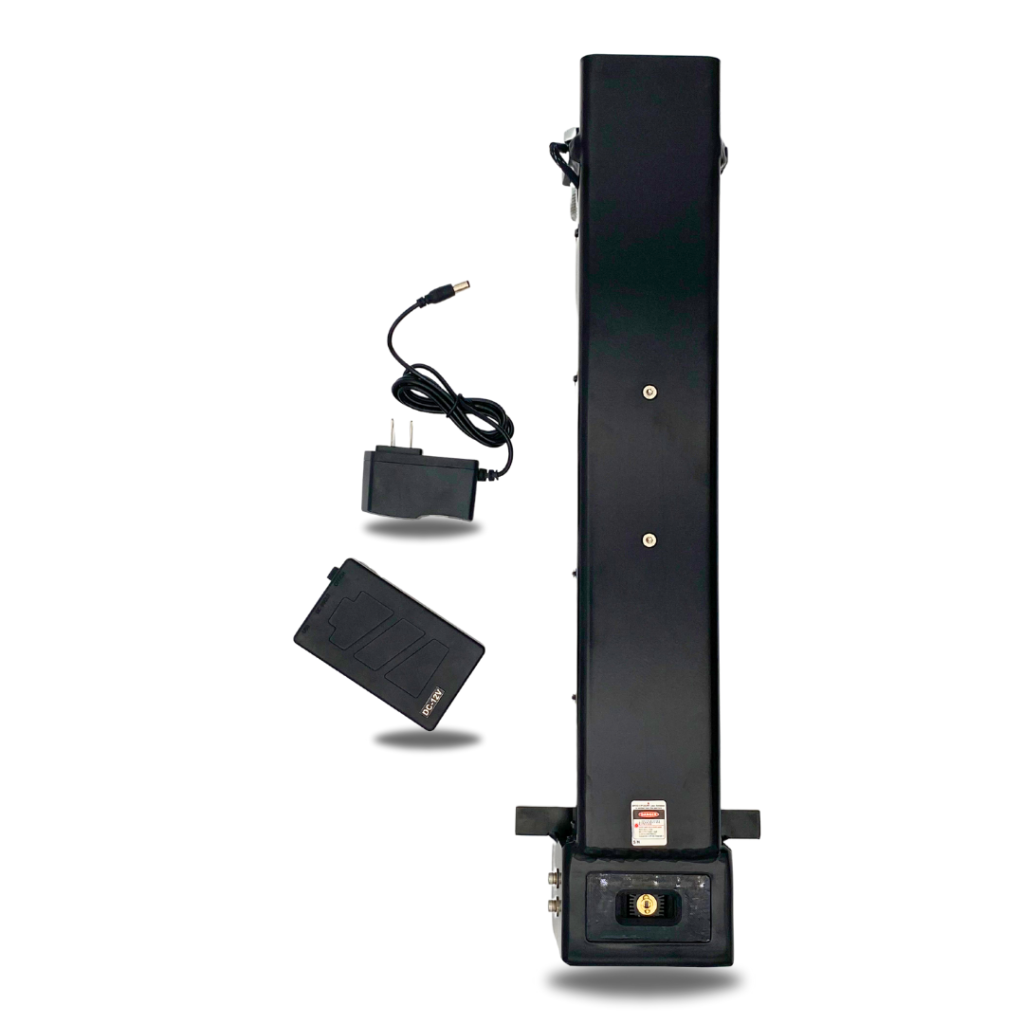

The Integra Laser is powered from a rechargeable lithium battery pack, delivering 100 hours of operation between charges. Its automatic control system intelligently activates the laser when the forks are raised (adjustable within a range of 6 to 18 inches) and deactivates it when the forks are lowered for driving or parking. For scenarios where you would like the laser to stay on, such as unloading from dark trailers, the sensor can be unplugged, allowing continuous laser operation.
Its self-contained design eliminates the need for any wiring modifications on the truck. With a battery holder and control system thoughtfully integrated into the robust welded steel mount, installation is simple. All items will be secured on the truck at once by tightening two bolts.
The Integra Laser is powered from a rechargeable lithium battery pack, delivering 100 hours of operation between charges. Its automatic control system intelligently activates the laser when the forks are raised (adjustable within a range of 6 to 18 inches) and deactivates it when the forks are lowered for driving or parking. For scenarios where you would like the laser to stay on, such as unloading from dark trailers, the sensor can be unplugged, allowing continuous laser operation.
Benefits
- Enhanced visibility and accuracy
- Reduced rework
- Decreased material, product, and rack damage
- Long-term savings
- Higher PPH
- Mitigate product loss
- Lower training cost for new operators
Options
- Battery or truck powered
- Camera only system
- Laser beam only system
- LED light system
- Combined camera and laser system
- Monitor mounting locations and sizes
- Truck fitting variables
- Spare batteries and chargers
- Battery chargers powered from the forklift
- Fully weatherproof models
Specification
| Laser Wavelength | 532nm (Green Color) |
| Output Power | Certified 4.0-5.0mW |
| FDA Class / ANSI Class | IIIA / 3R |
| Beam Fan Angle | 60° (4’ Length Line at 4’) |
| Power | 12VDC Input, <100mA |
| Optimum Operating Temp. | 59°F - 95°F (15°C - 35°C) |
| Dimensions | Class 2A – 17.5L x 3.5W x 3D in. (445 x 89 x 76mm) Class 3A – 21.5L x 3.5W x 3D in. (546 x 89 x 76mm) Class 4A – 26.5L x 3.5W x 3D in. (673 x 89 x 76mm) |
| Weight | Class 2A – 9.5 lb. (4.3kg) Class 3A – 11.5 lb. (5.3 kg) Class 4A – 13.5 lb. (6.2 kg) |
Options
Contact us for customization options such as truck powered systems, laser and camera options, truck variables, and more.
